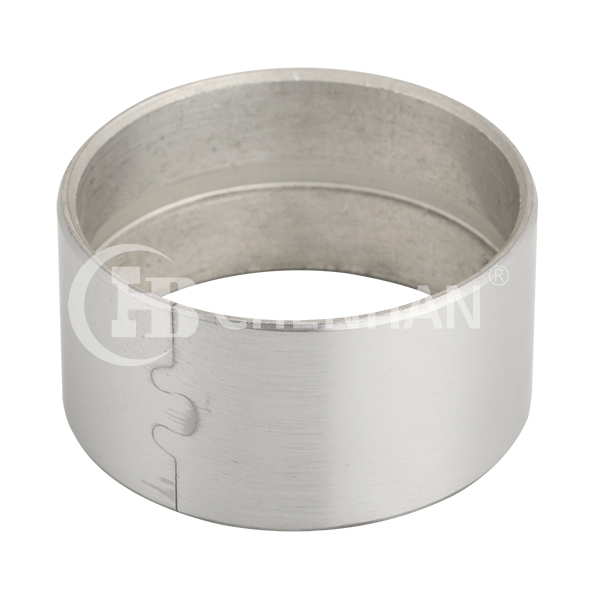

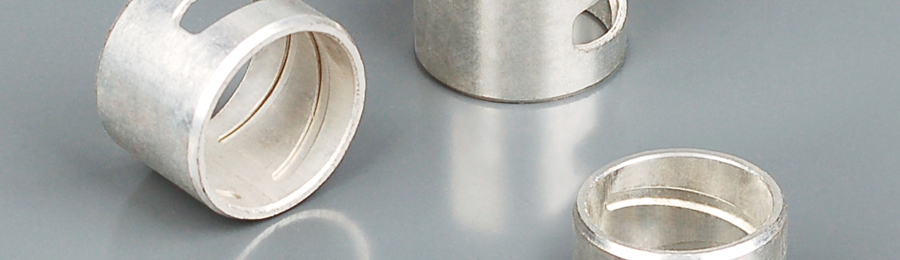

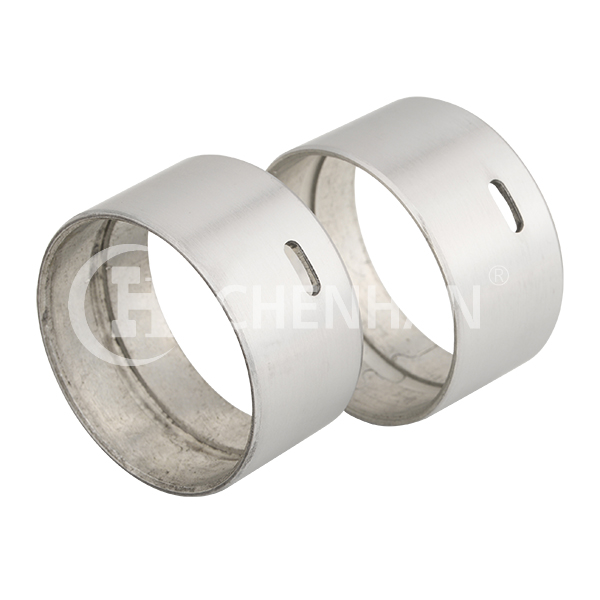

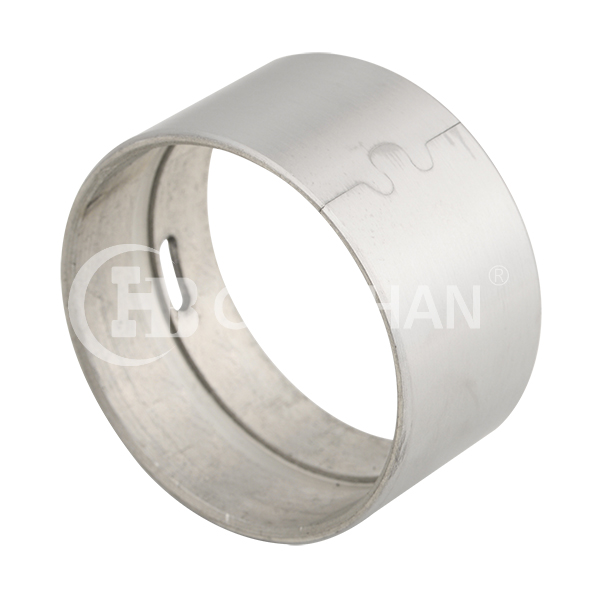

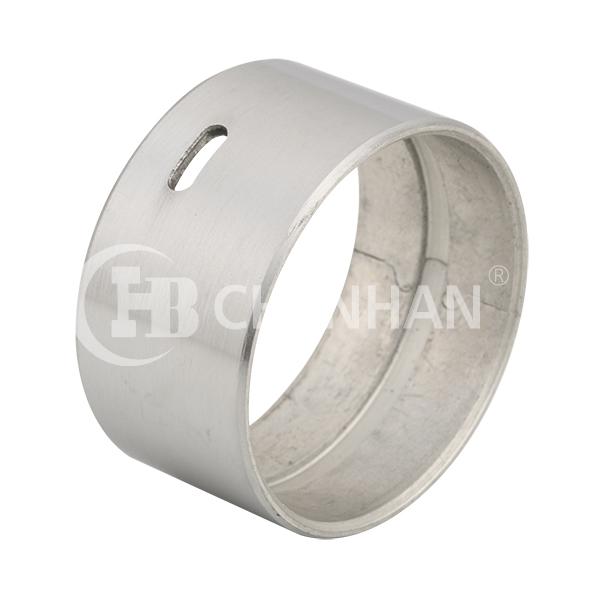

CHB20 High tin aluminum base bearing
CHB20 high tin aluminum base bearing is a product based on steel plate and rolled with AISn20Cu material. This product is often used as a small and medium power internal combustion engine bearing bush and air shaft bearing bushing. It is a novel product replacing the Babbitt alloy.
Size download
| Dynamic load | 90P N/mm2 | Maximum temperature | Grease lubrication | 150°C | |
| Line speed | Grease lubrication | —— | Fluid lubrication | 250°C | |
| Maximum PV value | —— | Matching shaft diameter | Hardness | ≥270 | |
| Coefficient of friction | —— | Roughness | 0.16~0.63 | ||
| Line speed | Fluid lubrication | 15 | Alloy layer hardness | 30~40 | |
| Maximum PV value | 8 | Thermal Conductivity | 47W/mk | ||
| Coefficient of friction | 0.04~0.12 | Coefficient of linear expansion (axial) | 18×10-6/K | ||
| Nominal thickness Norminal Thiickness |
Inner hole non-machinable thickness tolerance Tolerances of Series B (non-machinable) |
Machinable thickness tolerance of inner hole Tolerances of Series C (non-machinable) |
| 1.0 | -0.025 | +0.25 +0.15 |
| 2.0 | -0.030 | +0.25 +0.15 |
| 2.5 | -0.035 | +0.25 +0.15 |
| 3.0 | -0.040 | +0.30 +0.15 |
| 3.5 | -0.045 | +0.30 +0.15 |
| 3.5 | -0.050 | +0.30 +0.15 |
Construction Machinery: Chassis of supporting wheels, tow wheel bushings, tensioning wheel bushings; Automotive industry: balance shaft bushings, steel pin bushings, steering knuckle bushings, connecting rod bushings, etc.
